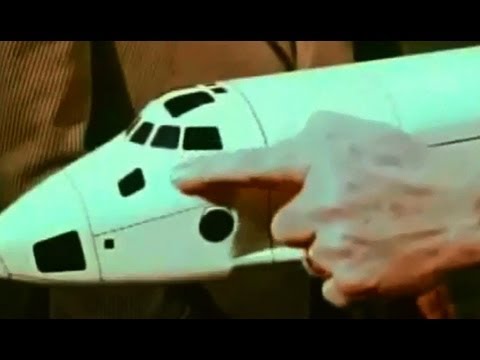

“Footage from NASA Johnson Space Center that gives insight to the thermal protection system applied to a shuttle so that its integrity stays sound throughout the entire mission.”
Public domain film from NASA, slightly cropped to remove uneven edges, with the aspect ratio corrected, and mild video noise reduction applied.
The soundtrack was also processed with volume normalization, noise reduction, clipping reduction, and/or equalization (the resulting sound, though not perfect, is far less noisy than the original).
The Space Shuttle thermal protection system (TPS) is the barrier that protected the Space Shuttle Orbiter during the searing 1,650 °C (3,000 °F) heat of atmospheric reentry. A secondary goal was to protect from the heat and cold of space while on orbit…
Materials
Thermal Protection System Constituent Materials, Space Shuttle Columbia (OV-102)
The TPS covered essentially the entire orbiter surface, and consisted of seven different materials in varying locations based on amount of required heat protection:
– Reinforced carbon-carbon (RCC), used in the nose cap, the chin area between the nose cap and nose landing gear doors, the arrowhead aft of the nose landing gear door, and the wing leading edges. Used where reentry temperature exceeded 1,260 °C (2,300 °F).
– High-temperature reusable surface insulation (HRSI) tiles, used on the orbiter underside. Made of coated LI-900 Silica ceramics. Used where reentry temperature was below 1260 °C.
– Fibrous refractory composite insulation (FRCI) tiles, used to provide improved strength, durability, resistance to coating cracking and weight reduction. Some HRSI tiles were replaced by this type.
– Flexible Insulation Blankets (FIB), a quilted, flexible blanket-like surface insulation. Used where reentry temperature was below 649 °C (1,200 °F).
– Low-temperature Reusable Surface Insulation (LRSI) tiles, formerly used on the upper fuselage, but were mostly replaced by FIB. Used in temperature ranges roughly similar to FIB.
– Toughened unipiece fibrous insulation (TUFI) tiles, a stronger, tougher tile which came into use in 1996. Used in high and low temperature areas.
– Felt reusable surface insulation (FRSI). White Nomex felt blankets on the upper payload bay doors, portions of the midfuselage and aft fuselage sides, portions of the upper wing surface and a portion of the OMS/RCS pods. Used where temperatures stayed below 371 °C (700 °F).
Each type of TPS had specific heat protection, impact resistance, and weight characteristics, which determined the locations where it was used and the amount used.
The shuttle TPS has three key characteristics that distinguish it from the TPS used on previous spacecraft:
– Reusable. Previous spacecraft generally used ablative heat shields which burned off during reentry and so couldn’t be reused. This insulation was robust and reliable, and the single-use nature was appropriate for a single-use vehicle. By contrast, the reusable shuttle required a reusable thermal protection system.
– Lightweight. Previous ablative heat shields were very heavy. For example the ablative heat shield on the Apollo Command Module comprised about 1/3 of the vehicle weight. The winged shuttle had much more surface area than previous spacecraft, so a lightweight TPS was crucial.
– Fragile. The only known technology in the early 1970s with the required thermal and weight characteristics was also so fragile, due to the very low density, that one could easily crush a TPS tile by hand…
Much of the shuttle was covered with LI-900 silica tiles, made from essentially very pure quartz sand. The insulation prevented heat transfer to the underlying orbiter aluminum skin and structure. These tiles were such poor heat conductors that one could hold one while it was still red hot. There were about 24,300 unique tiles individually fitted on the vehicle, for which the orbiter has been called “the flying brickyard”. Researchers at University of Minnesota and Pennsylvania State University are performing the atomistic simulations to obtain accurate description of interactions between atomic and molecular oxygen with silica surfaces to develop better high-temperature oxidation-protection systems for leading edges on hypersonic vehicles.
The tiles were not mechanically fastened to the vehicle, but glued. Since the brittle tiles could not flex with the underlying vehicle skin, they were glued to Nomex felt Strain Isolation Pads (SIPs) with RTV silicone adhesive, which were in turn glued to the orbiter skin. These isolated the tiles from the orbiter’s structural deflections and expansions…
